Product Advantages

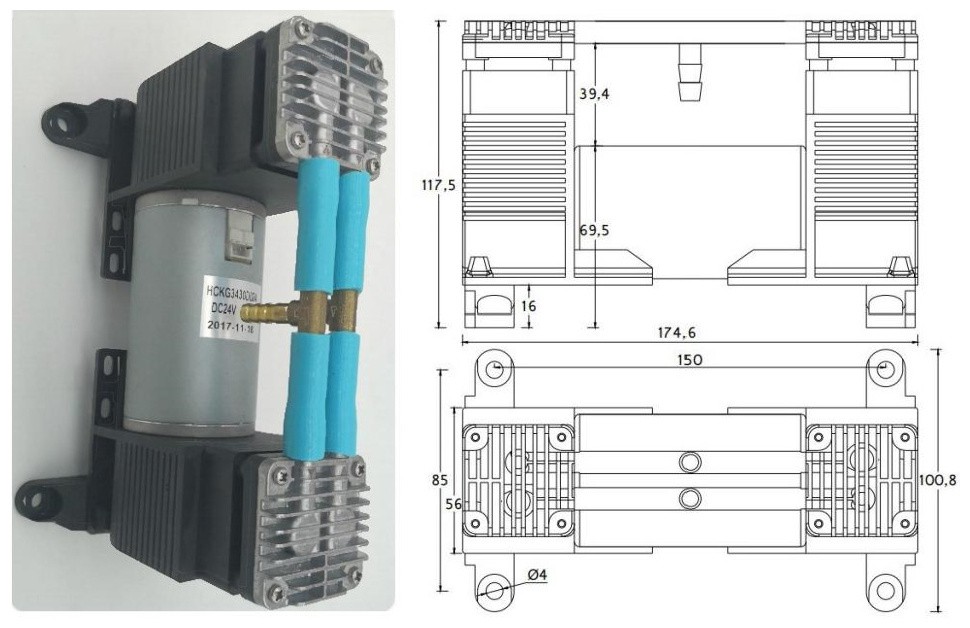

| Motor type | Model | Max. vacuum kpa | Max.Flow L/min | Max.Pressure Bar | Power W | Rated voltage V | Dimensions mm | Weight g | Fixed bracket |
| Brushed | T34V12A80R25 | 80 | 35 | 1.5 | 30 | 12/24 | 101/175/118 | 1150 | Y |
| Brushed | T34V12B85R25 | 85 | 30 | 2 | 36 | 12/24 | 101/175/118 | 1150 | Y |
| Brushed | C34V12A95R25 | 95 | 20 | 1.5 | 32 | 12/24 | 101/175/118 | 1150 | Y |
1. Compact structure, suitable for installation in compact spaces
The micro vacuum pump has a lightweight motor and a pump body that is built into the pump. This makes it much smaller while yet allowing for enough pumping speed and negative pressure. They can all be simply combined, whether they are portable tools, small medical devices, or embedded applications.
2. Supports dual voltage input of 12V and 24V
The device comes in two versions: 12V and 24V. These can be used with a variety of power supply systems.
The 12V version is better for mobile electronics, automotive equipment, and portable gadgets that may be used outside;
People often use the 24V version in big automation systems, smart manufacturing equipment, and industrial tools.
The dual voltage architecture gives engineers more options when they are working on a project.
3. Stable negative pressure output, efficient operation
The vacuum pump keeps a consistent negative pressure while it works and doesn't lose power easily. It does this by using efficient brushless or brushed motors (optional) and optimized diaphragm or vane pump architectures. Can satisfy the needs of applications that require continuous work or pumping on and off.
4. Low noise and low vibration levels
The pump body has a noise-reducing chamber design, a rubber shock-absorbing structure, and an optimized air passage. This makes the operation noise far lower than that of similar products on the market. It can nevertheless provide a comfortable experience for devices that are sensitive to sound.
5. High dependability and a long life design
It is not easy to age or leak air after a long time of use since it is composed of materials that resist corrosion and a construction that resists wear. Product consistency and durability are successfully guaranteed through strict aging and performance testing.
Customizable content
This tiny vacuum pump offers deep customization options to fulfill the needs of different equipment makers:
1. Adjusting the voltage and power
Works with 6V, 9V, 12V, and 24V
Depending on the application, you can change the power, negative pressure intensity, and flow rate.
2. Change the way it looks and how it is installed
Change the position of the support screw hole
Support changes to the structure of the pump body
The size of the connection hose and interface can be changed.
3. Changing the performance settings
The highest degree of vacuum
speed of flow
Hours of effort that never stop
Optimization of noise levels
4. Personalizing the materials and the way they are put together
You can pick between food-grade and medical-grade materials.
Optional materials that withstand corrosion and high temperatures
Support for upgrading brushless motors (to make them last longer)
5. Customizing the packaging and the brand
OEM and ODM
Laser and screen printing of logos
Private model service (in big amounts)
Customization helps gadget makers produce their own unique goods.
|
Model |
Ultimate vacuum kPa |
Flow L/min |
Max. Pressure Bar |
Power W |
DC motor V |
Dimensions mm |
Weight g |
|
T34V12A80R25 |
80 |
35 |
1.5 |
30 |
12/24 |
101/175/118 |
1150 |
|
T34V12B85R25 |
85 |
30 |
2 |
36 |
12/24 |
101/175/118 |
1150 |
|
C34V12A95R25 |
95 |
20 |
1.5 |
32 |
12/24 |
101/175/118 |
1150 |
Application scenarios
Because it is compact, quiet, and easy to integrate, the 12V/24V mini vacuum pump may be used in many different fields. It can cover the following areas:
1. Equipment for health and medicine
Attractor that can be moved
Extra system for the nebulizer
System for pumping blood pressure monitors
Tools for training your lungs
POCT medical testing tools
For medical equipment, vacuum pumps need to be stable, silent, and free of oil contamination. These tiny pumps meet all of those needs.
2. Tools for labs and analysis
detector for gas
Extraction with the help of chromatography
Experimental equipment for small negative pressure
Tool for moving samples
The fact that it has a constant pressure output and doesn't need lubrication makes it perfect for precise experimental settings.
3. Smart homes and tiny appliances
Automatic door lock absorption system
Equipment for storing things in a vacuum
Extraction module in air quality tools
DIY gadgets and robots that are light
Mini vacuum pumps make smart home gadgets quieter and lighter.
4. Equipment for industry and automation
System for automatic adsorption and handling
Positioning and adsorbing optical products
Small packing equipment vacuum module
System for switching gas paths
In industry, 24V pumps are very widespread since they can keep working well even when they are used for a long time without problems.
5. Car parts
Tool for finding vehicle exhaust
Internal exhaust of electrical parts in cars
Vacuum assist device that goes on a vehicle
Good for voltage systems in vehicles that are very safe.
FAQ
Is the vacuum pump oil-free? Do you need daily maintenance?
Yes, this mini vacuum pump is designed with no oil, which will not cause oil pollution and requires almost no maintenance. Just keep the air path clean.
Is the noise loud during work? Is it suitable for quiet places?
After optimization, the noise is very low and suitable for quiet scenarios such as medical equipment and household devices.
Can it work continuously? Will it heat up?
Support continuous operation, but choose according to specific model and power. It is recommended to leave ventilation space for heat dissipation during long-term operation.
Can higher negative pressure or larger flow be customized?
Sure, we offer a variety of pump head structures and motor versions that can be customized for high performance according to your needs.
What is the minimum order quantity?
MOQ can be negotiated based on different versions, generally starting from 100-500 units. OEM can accept more flexible solutions.
Which is more suitable for my application, 12V or 24V?
12V: Suitable for car and portable devices
24V: Suitable for industrial automation equipment
If unsure, we can provide professional selection suggestions.
